Description

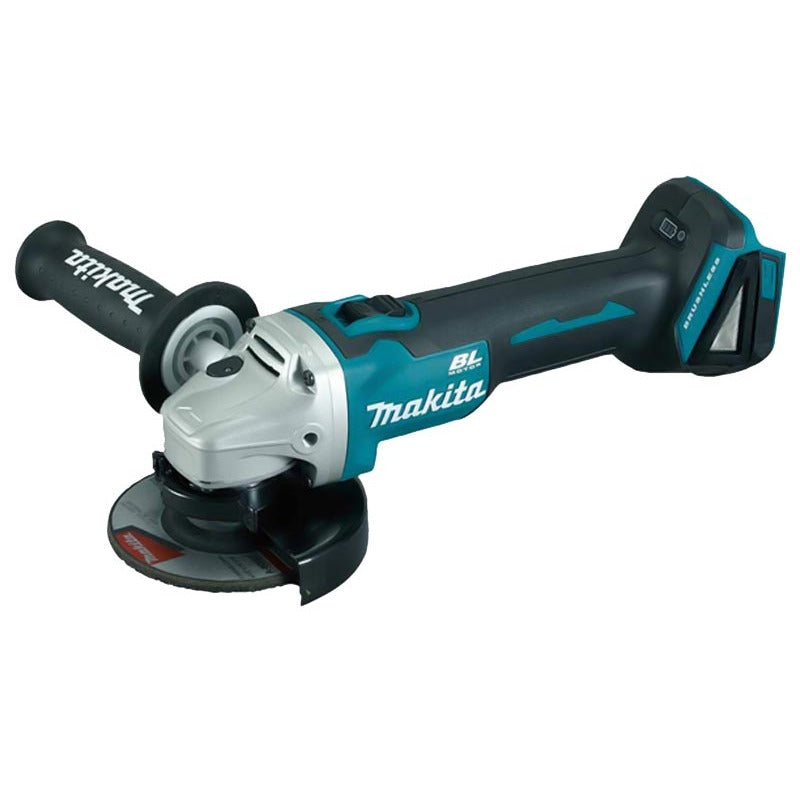

The Makita DGA504Z is an 18V LXT cordless brushless 125mm angle grinder built for demanding trade and site work. Its enhanced brushless DC motor automatically adjusts torque and speed to match load conditions — delivering high-speed rotation on light applications and high torque on heavy-duty cuts, all while reducing kickback and friction through soft materials.
Body only — battery and charger sold separately. Compatible with all Makita 18V LXT batteries.
Key Features
- Automatic speed control — continuously adjusts cutting speed to load conditions for optimum performance and efficiency
- High-power brushless motor — delivers up to 8,500 RPM no-load speed with intelligent current control for self-adjusting torque
- Soft start — tool starts gradually rather than at full speed, improving control and reducing operator fatigue
- Anti-restart function — prevents accidental start-up after a power interruption for safe, controlled operation
- Electronic current limiter — overload protection to safeguard both tool and battery
- Battery fuel gauge LEDs — at-a-glance charge level indicator, plus alerts for anti-restart and current limiter activation
- Rubberised soft grip — ergonomic body designed for extended use without wrist strain
- Slide switch — conveniently positioned for confident one-hand operation
Specifications
- Voltage: 18V Li-Ion
- Max wheel diameter: 125mm
- Max wheel thickness: 6mm
- Bore diameter: 22.23mm
- No-load speed: 8,500 RPM
- Noise (sound pressure): 79 dB(A) (K: 3 dB(A))
- Vibration – surface grinding: 6.5 m/s² (K: 1.5 m/s²)
- Vibration – surface grinding with anti-vibration side grip: 6.0 m/s²
- Net weight: 2.5 kg
