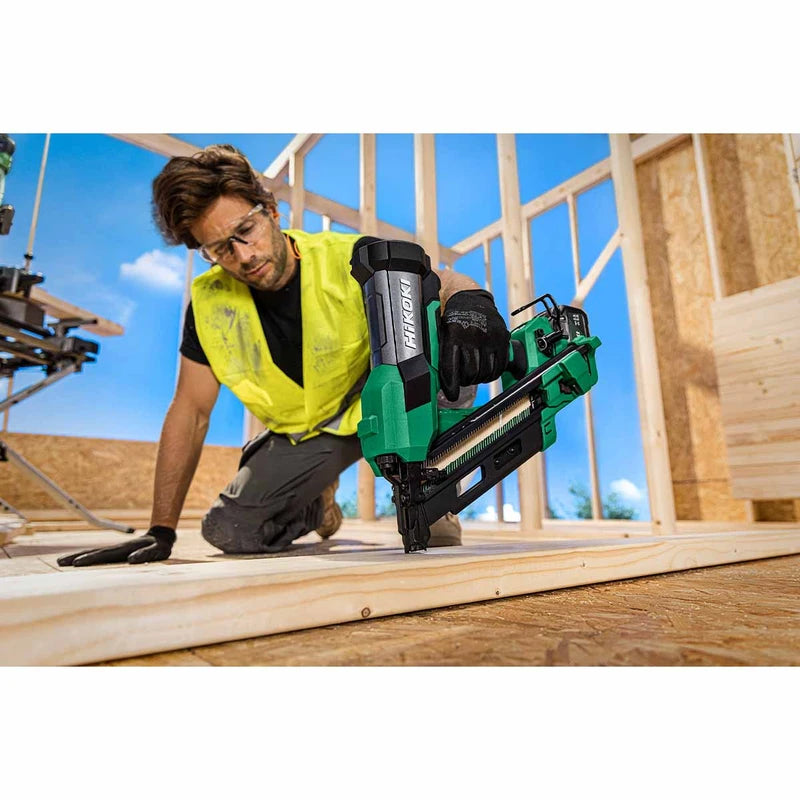

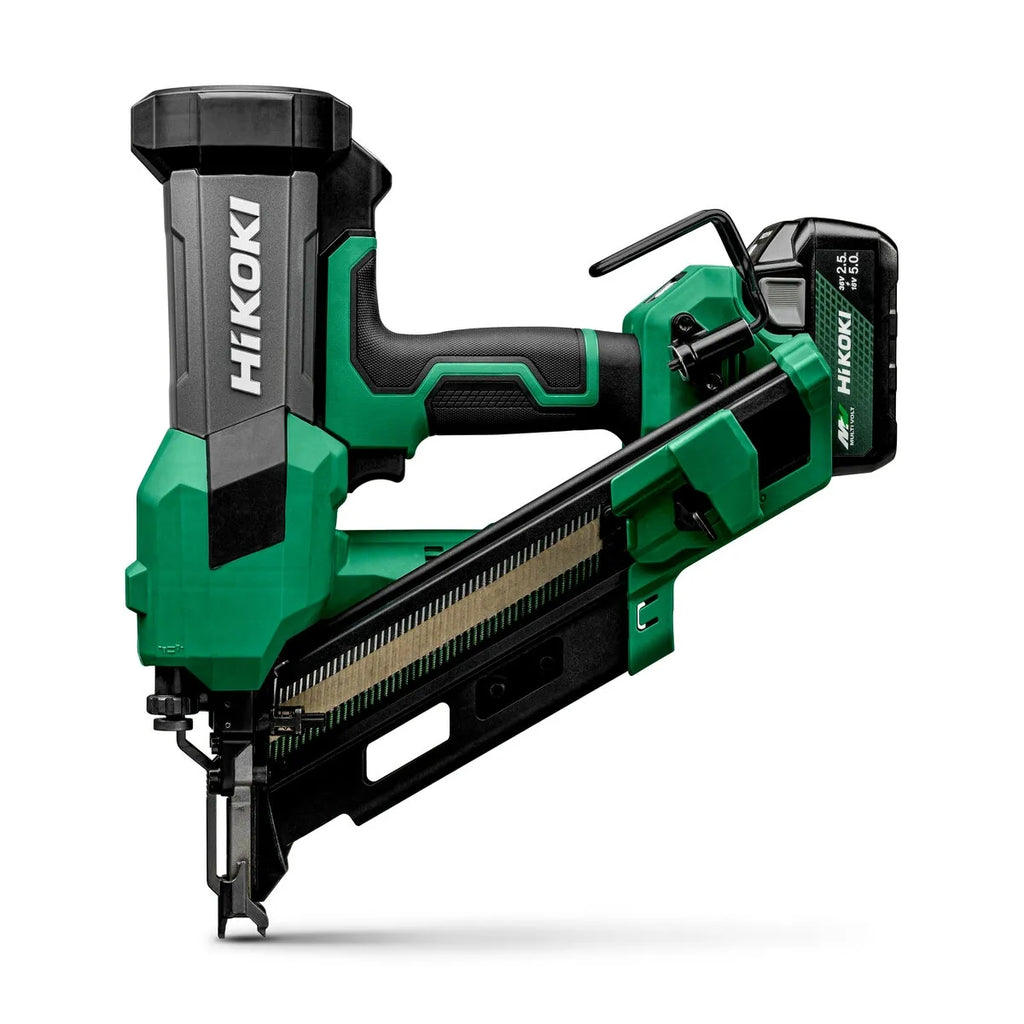

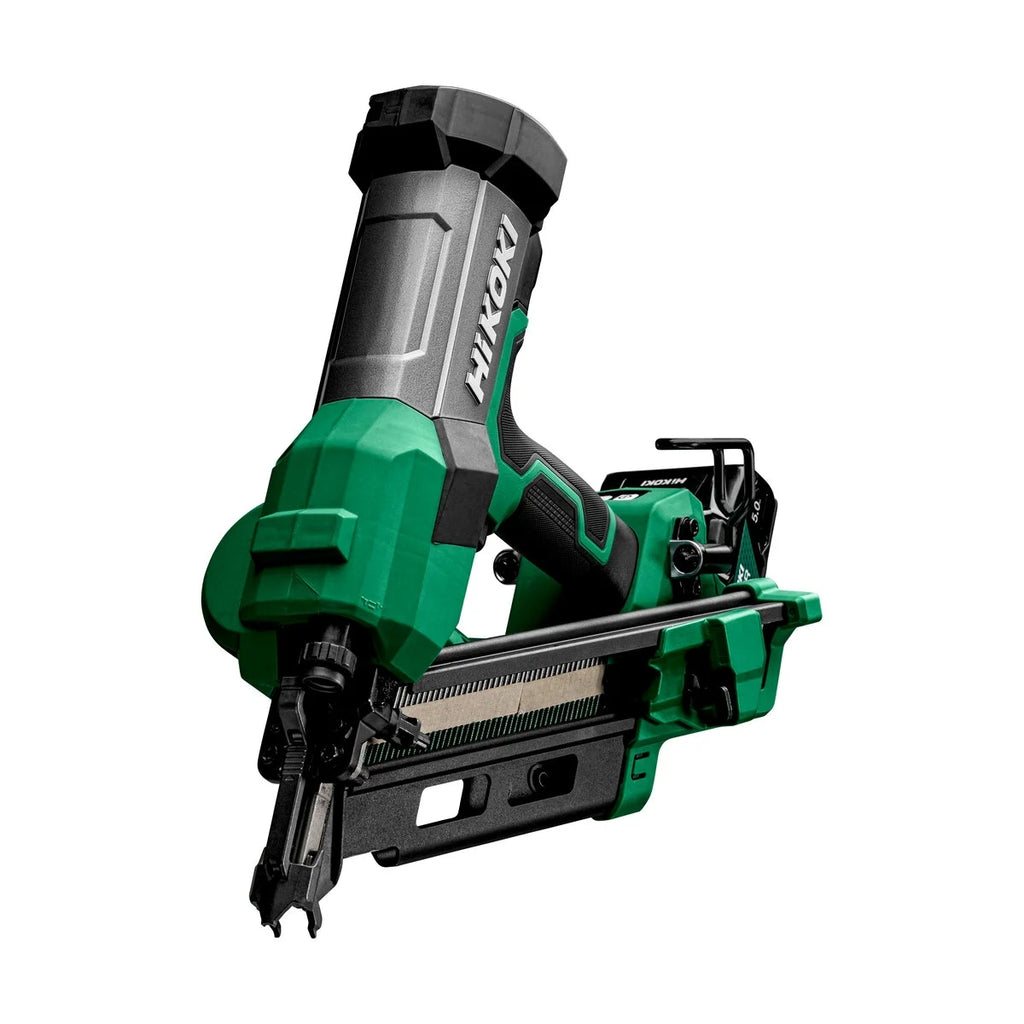

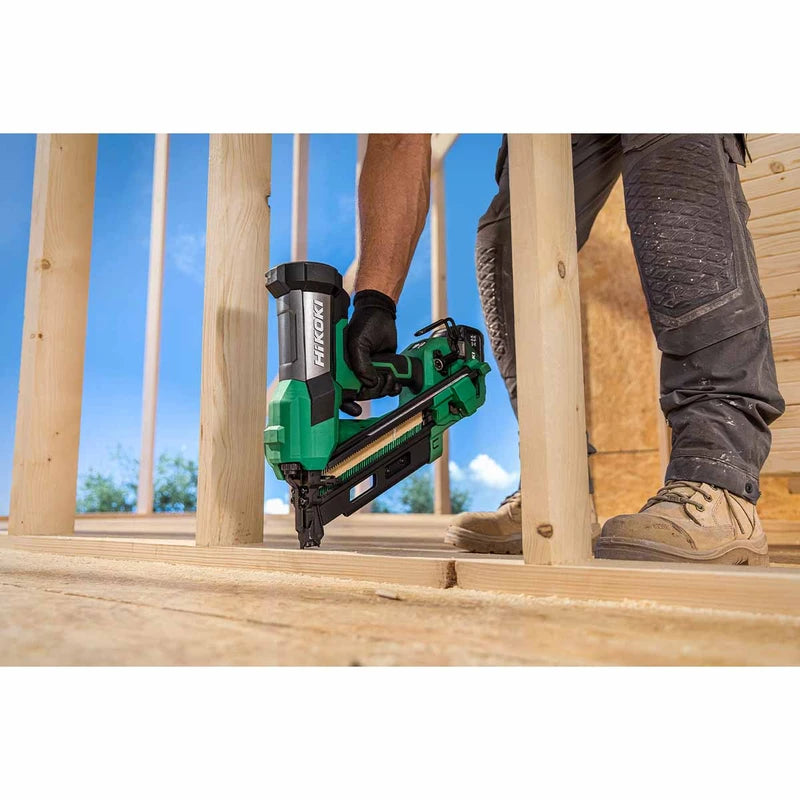

The HiKOKI NR1890DCBJPZ is the world's lightest 18V brushless 90mm framing nailer. Built for first fix carpentry, roofing and timber frame work, it drives ring shank nails up to 90mm into tough timber at up to 4 nails per second, with no gas, no hoses and no compressor. Supplied as a full kit, ready to work out of the box.

Key Features

• Fast firing: drives up to 4.5 nails per second
• Air Spring Drive System +: HiKOKI's unique mechanism for top firing speed, compact design and long service life
• Gas-free battery power: no fumes, no hoses, no compressor
• High power: sinks ring shank nails up to 90mm into tough materials
• Magnesium components: robust build and the lightest weight in its class
• Lightweight magazine: quick loading, easy cleaning and trouble-free operation

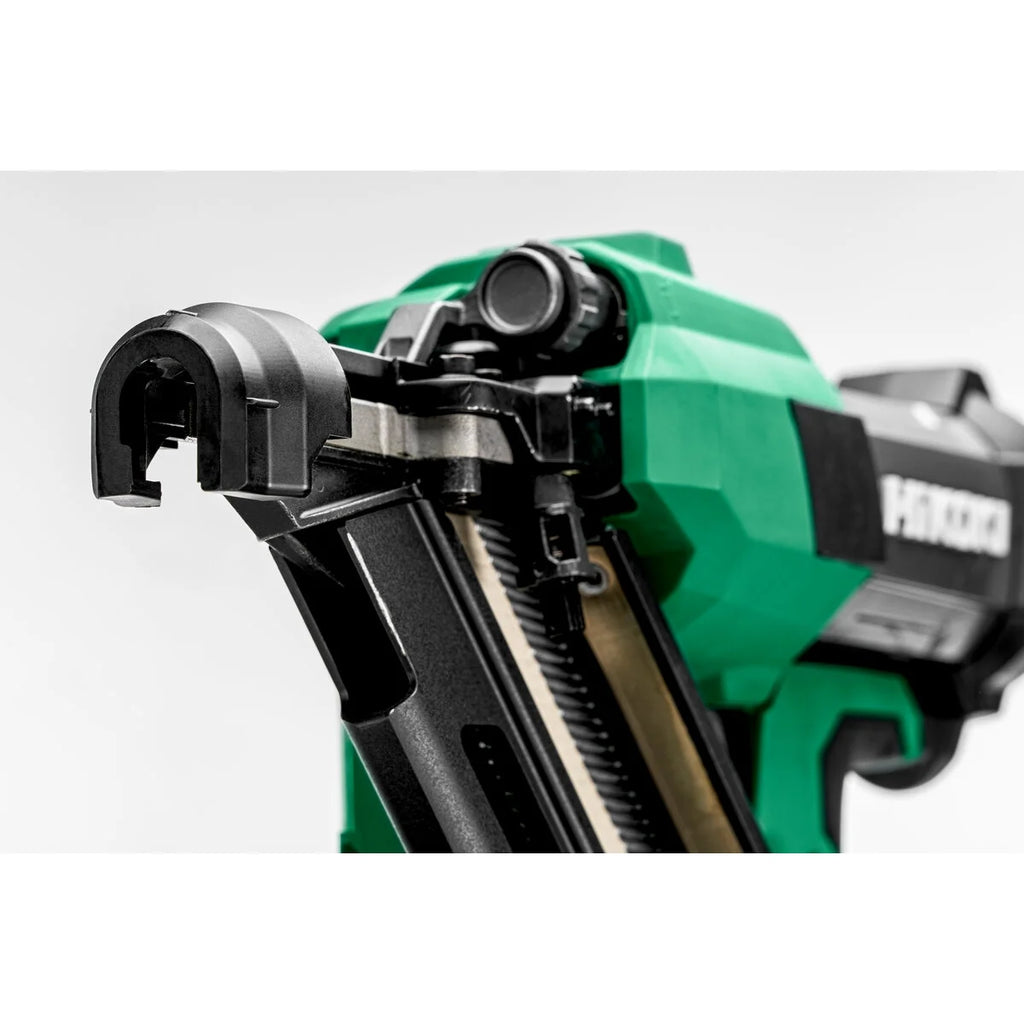

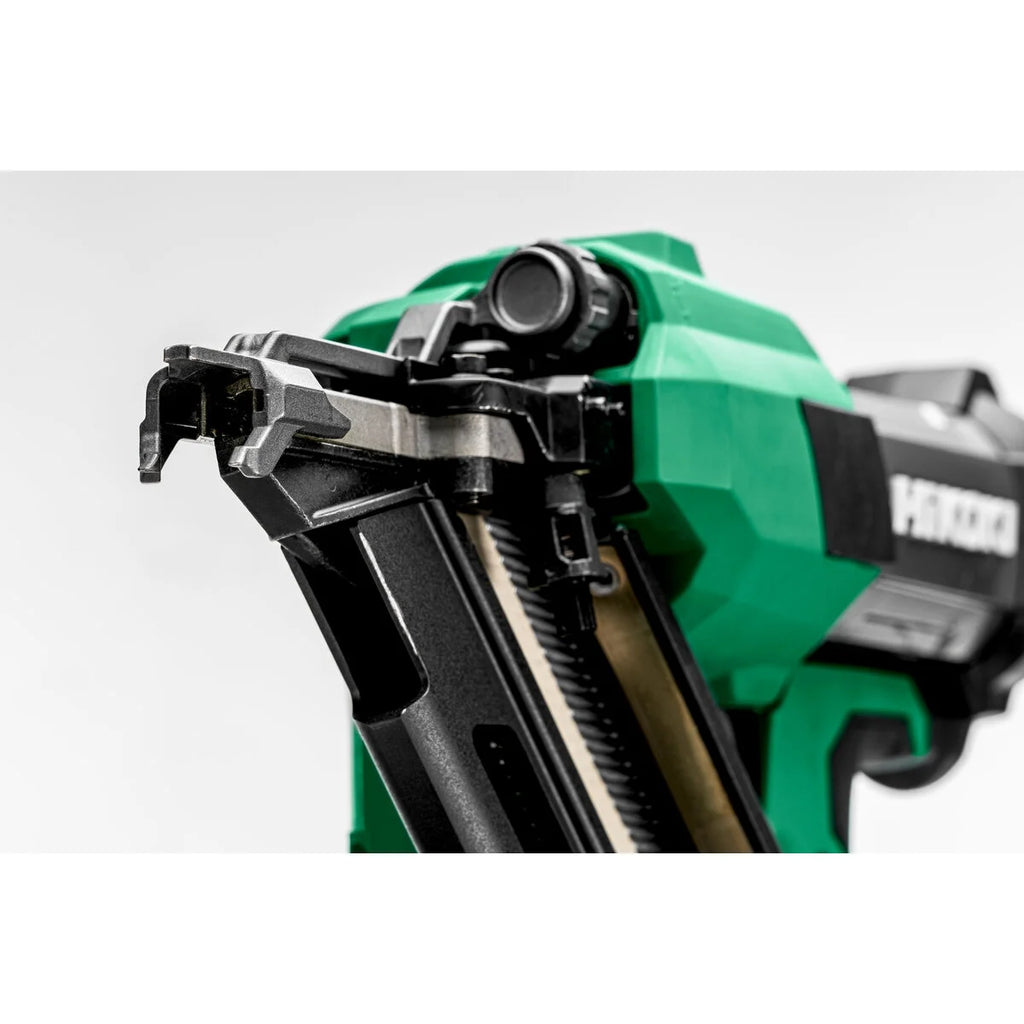

• Aggressive nose: prevents slipping on angled shots for better skew nailing
• Electrical dry-fire lockout: stops firing when a few nails remain and flashes the LED to protect the workpiece

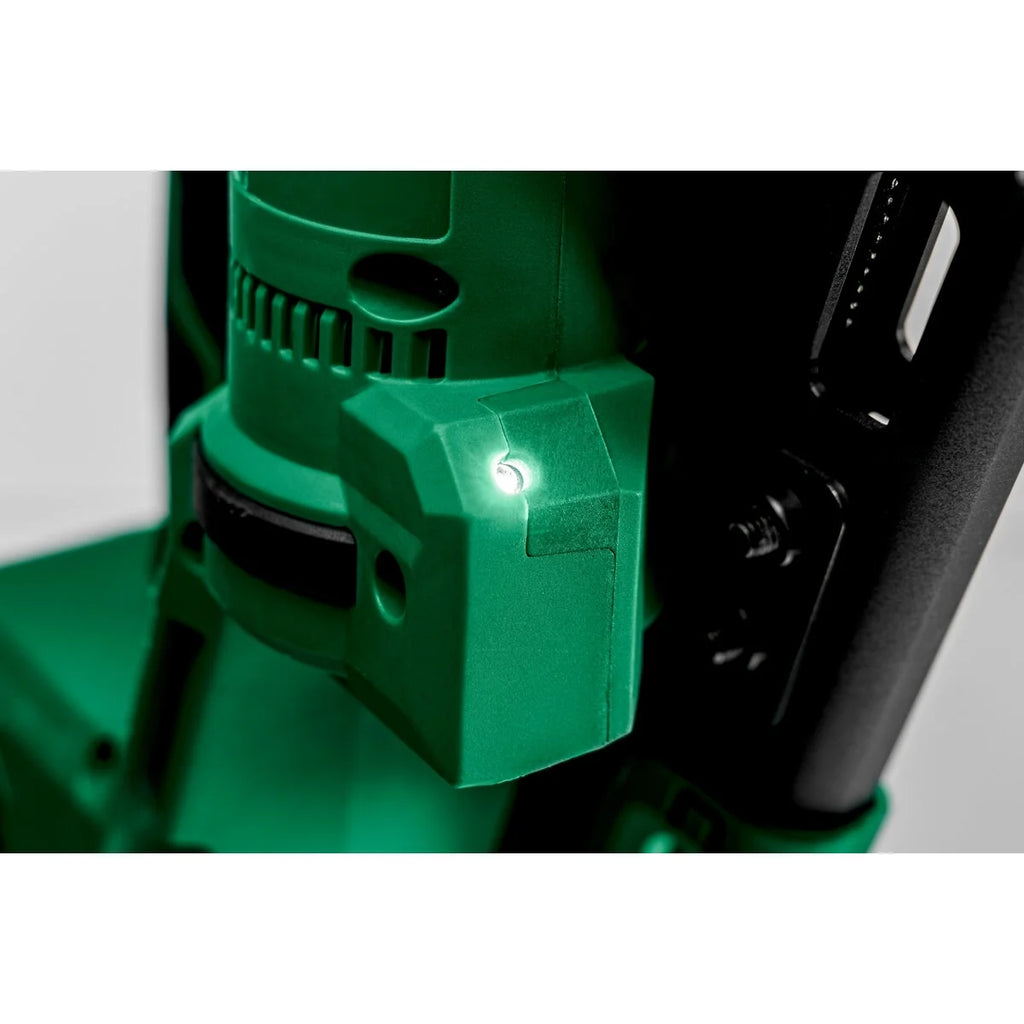

• Bright LED light: improved visibility in low light
• Versatile on site: compatible with magazines for framing, metal connector and duplex nailers

Specifications

• Model / Article number: NR1890DCBJPZ
• EAN: 4966376421671
• Battery voltage: 18V
• Motor: Brushless
• Driving system: DC (Air Spring)
• Nail length: 50–90mm
• Nail shank diameter: 2.8–3.3mm
• Nail collation angle: 30°–34°
• Nail collation type: Paper collated
• Magazine capacity: 54–57 nails
• Nailing speed: 4.5–5 nails/sec

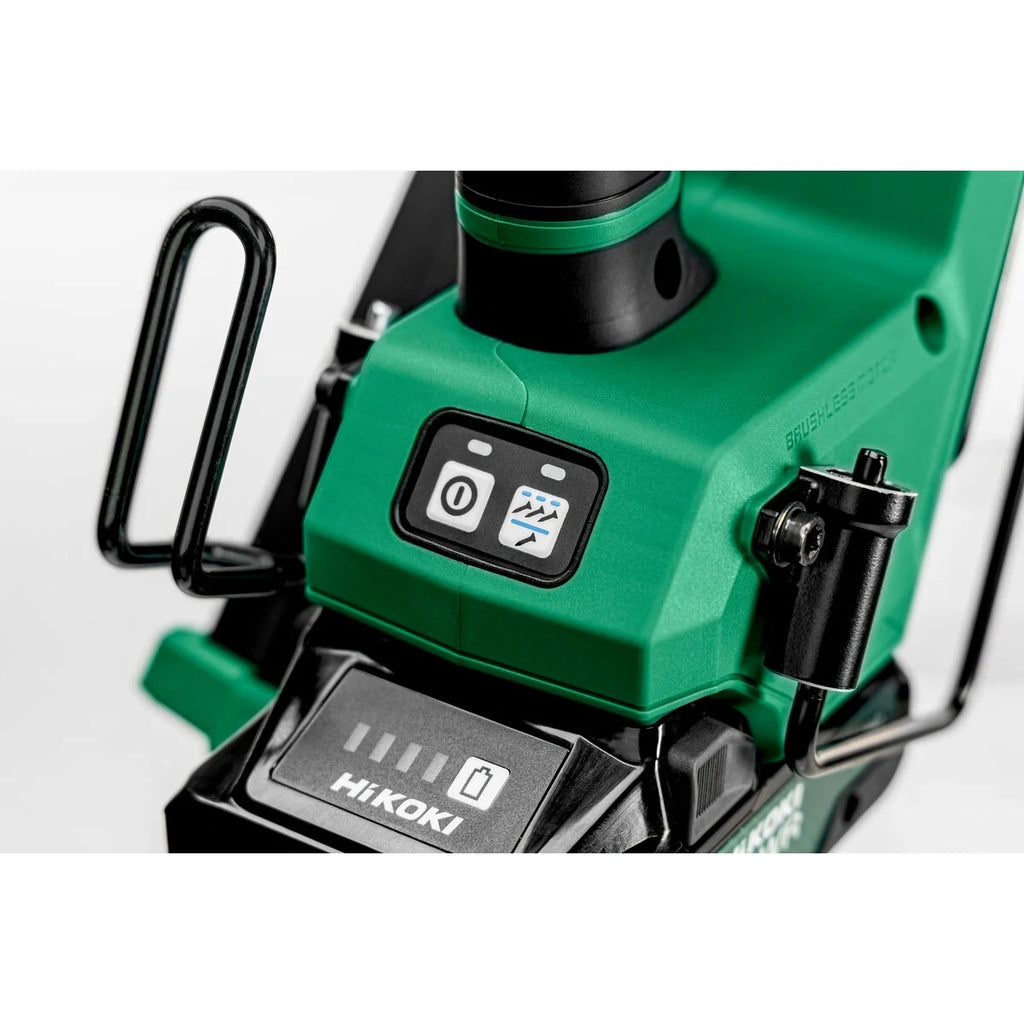

• Contact actuation mode: Yes
• Depth adjustment: Yes
• Dry-fire lockout: Yes
• LED light: Yes
• Dimensions (L x W x H): 324 x 139 x 354mm
• Weight (without battery): 3.3kg
• Weight (with battery): 4.04kg
• Sound power: 105dB
• Sound pressure: 92dB (uncertainty KpA 3dB)
• Warranty: 36 months with registration

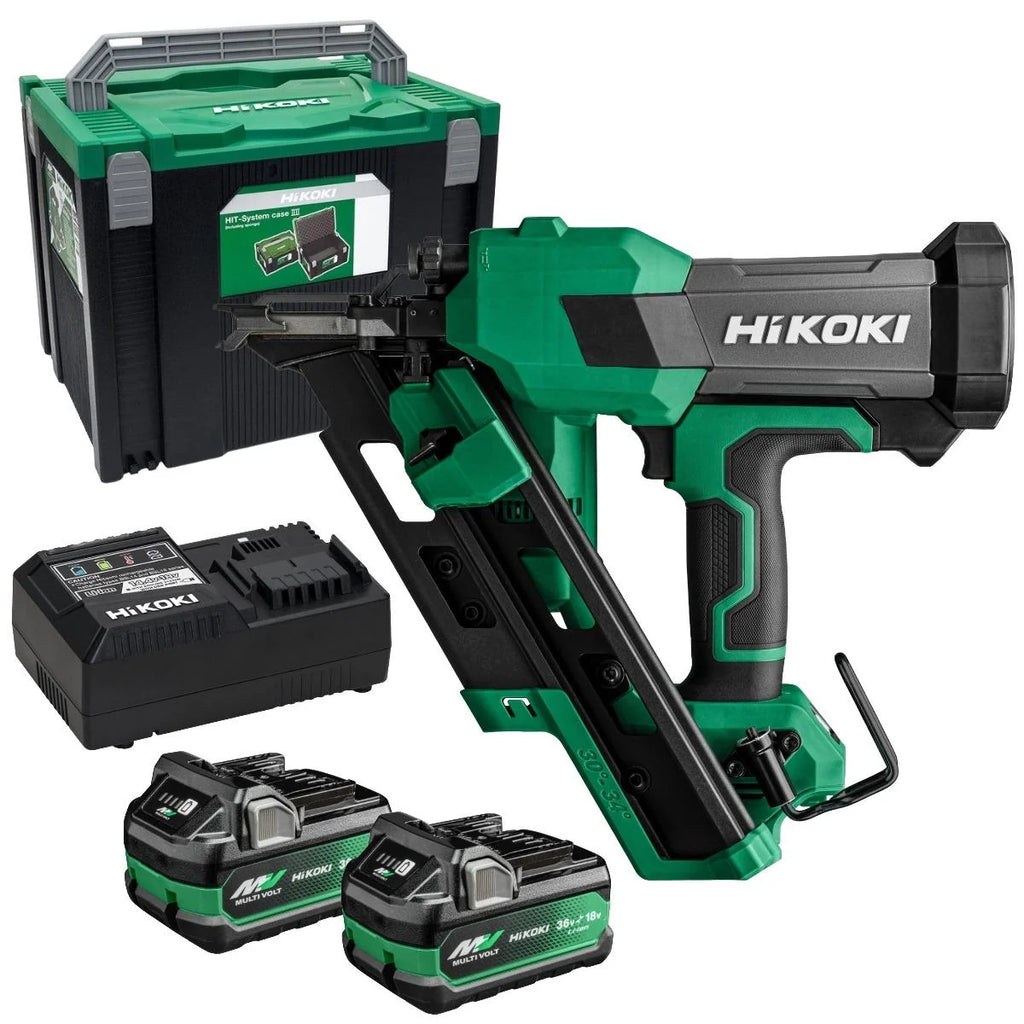

What's in the Box

• 1x HiKOKI NR1890DCB 18V framing nailer
• 2x BSL36A18X MultiVolt batteries
• 1x UC18YSL3 charger
• 1x Stackable System Case 4
• TORX bar wrench
• Protective glasses
• Nose cap
• Battery cover
