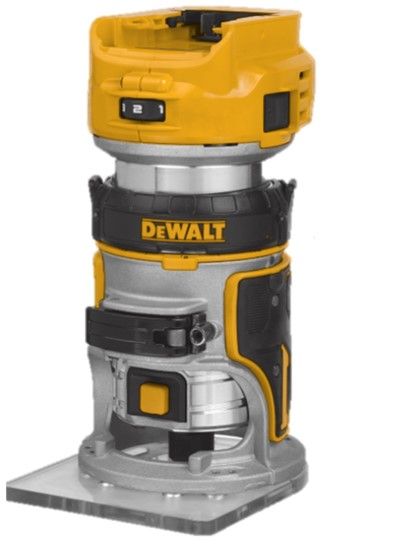

The DeWalt DCW604NT-XJ 18V XR brushless cordless router combines interchangeable fixed and plunge bases with variable speed control for trimming, edge profiling and plunge-routing tasks. Supplied in a TSTAK VI deep carry case with inlay, it keeps the router and its accessories together between jobs.

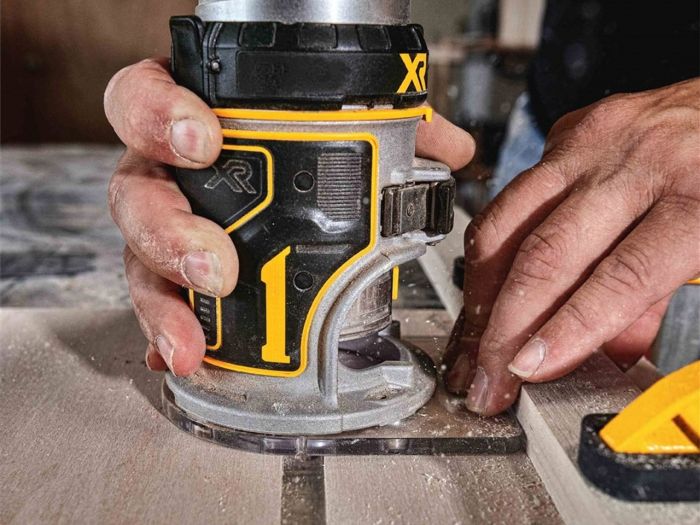

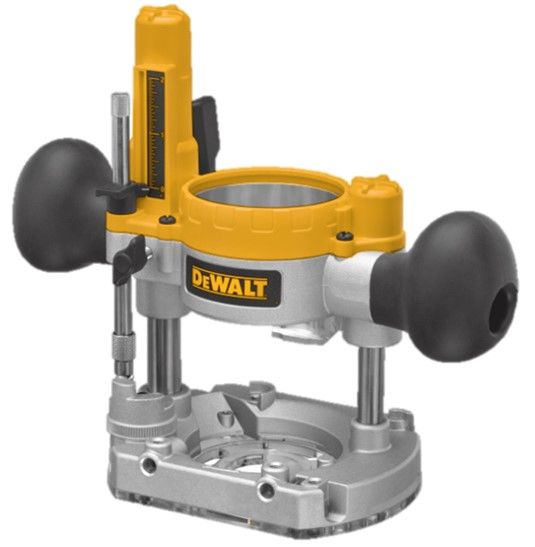

Use the fixed base for tasks such as rounding over edges and flush trimming hardwood edging, then switch to the plunge base for hinge mortises and inlay cavities. Quick-release tabs make changing bases straightforward.

Body only: battery and charger are not included. Fixed base, plunge base and TSTAK VI case are supplied.

Key features and benefits

• 18V XR cordless operation: mobility without a trailing power lead.
• Brushless motor: efficient operation without carbon brushes to replace.
• Variable speed: 16,000–27,000rpm to suit different routing applications.
• Soft start and electronic feedback: controlled starting with motor speed maintained through the cut.
• Clear view of the work: dual LEDs and a clear sub-base improve visibility.
• Controlled depth adjustment: adjustment ring, depth ring and clamping mechanism help set and secure the motor position.
• Convenient bit changes: large, low-pressure spindle lock button and multiple shaft-lock positions.
• Quick base changes: spring-loaded release tabs allow easy base removal.
• Durable construction: aluminium motor housing and bases, with an extended sub-base for greater work surface contact.

Technical specifications

• Model: DCW604NT-XJ
• Voltage/platform: 18V XR
• Battery type: lithium-ion, battery not included
• Collet chuck capacity: 1/4 inch / 8mm
• Maximum cutter diameter: 30mm
• No-load speed: 16,000–27,000rpm
• Spindle lock: 12 positions
• Plunge stroke: 55mm
• Shipping weight: 4.83kg

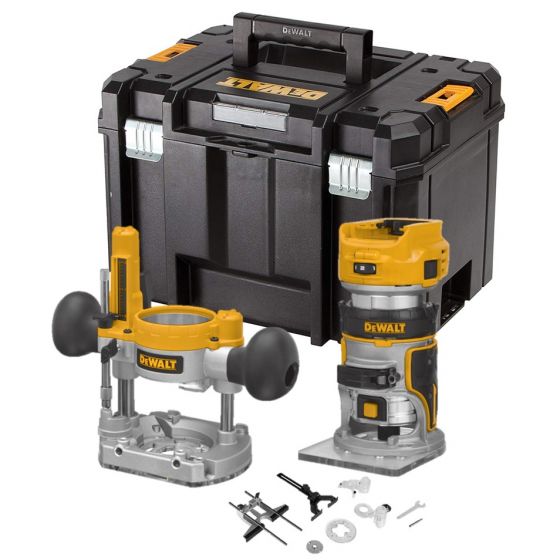

What's in the box

• 1 × DCW604 1/4-inch router, body only
• 1 × 8mm collet
• 1 × 17mm spanner
• 1 × Centring cone
• 1 × 17mm guide bush
• 1 × Parallel fence with guide rods
• 1 × Fixed base with dust extraction
• 1 × Plunge base
• 1 × Wrench
• 1 × TSTAK VI carry case with inlay

No battery or charger is supplied.
