Bosch GBH 18V-22 18V Brushless SDS-Plus Hammer Drill

The Bosch GBH 18V-22 is Bosch's most compact and ergonomic SDS-Plus hammer drill — and one of the most capable in its class. With 1.9 J of impact energy, a 22mm concrete drilling capacity, and a lightweight 2.3 kg body with a well-defined centre of gravity, it's built for tradespeople who need power and comfort in equal measure. Ideal for plumbers, electricians, and installation engineers, especially during overhead work.

What's in the Box

• Bosch GBH 18V-22 SDS-Plus hammer drill
• 2x 18V 4.0Ah Li-Ion batteries with COOLPACK technology
• GAL 18V-40 compact quick charger (4.0Ah charge time: 48 min to 80% / 65 min to 100%)
• Carry case
• Depth gauge
• Cleaning cloth
• Instruction manual

Key Features

• 1.9 J impact energy — 22mm drilling capacity in concrete and masonry; brushless motor for maximum efficiency and zero maintenance
• 3 operating modes — drilling, hammer drilling, and chiselling for versatile on-site use
• Constant speed control — maintains consistent speed under load for cleaner, more controlled results
• Vibration Control — absorbs pulsation to significantly reduce vibration exposure to hands and arms
• KickBack Control — automatically shuts the tool down if sudden loss of control is detected, reducing injury risk
• Most compact & ergonomic 18V SDS-Plus from Bosch — 2.3 kg, balanced centre of gravity, ideal for overhead drilling
• GDE 18V-12 dust extractor compatible — clip-on attachment (sold separately) for virtually dust-free drilling, including overhead
• Electronic Motor Protection (EMP) — auto-shutdown on overload, overheat, or blockage for longer tool life
• Tool-free bit and chisel changes — minimal downtime on site
• LED job light — illuminates the work area for precision in low-light conditions
• AMPShare Alliance compatible — works with all 18V AMPShare batteries and chargers

Technical Specifications

• Battery voltage: 18V
• Tool holder: SDS-Plus
• Operating modes: 3 (drilling, hammer drilling, chiselling)
• Drilling capacity in concrete: 4–22mm (recommended: 4–12mm)
• Max. drilling in wood: 20mm | Max. drilling in metal: 13mm
• Impact energy: 1.9 J
• Impact rate: 0–4,675 bpm
• Rated speed: 0–1,050 rpm

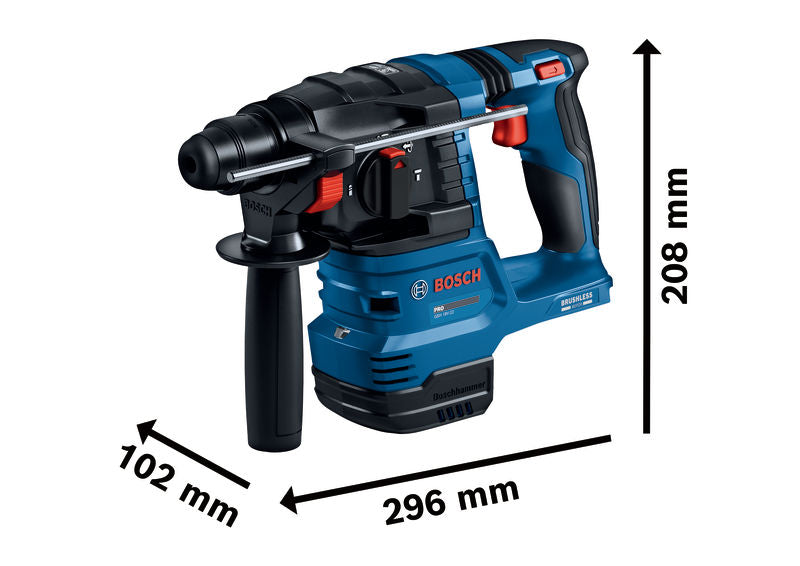

• Dimensions (L x W x H): 296 x 102 x 208 mm
• Weight (without battery): 2.3 kg
• Vibration (hammer drilling): 14 m/s² | Vibration (chiselling): 9.4 m/s²
• Sound pressure: 94 dB(A) | Sound power: 102 dB(A)
• Part number: 0611924072
