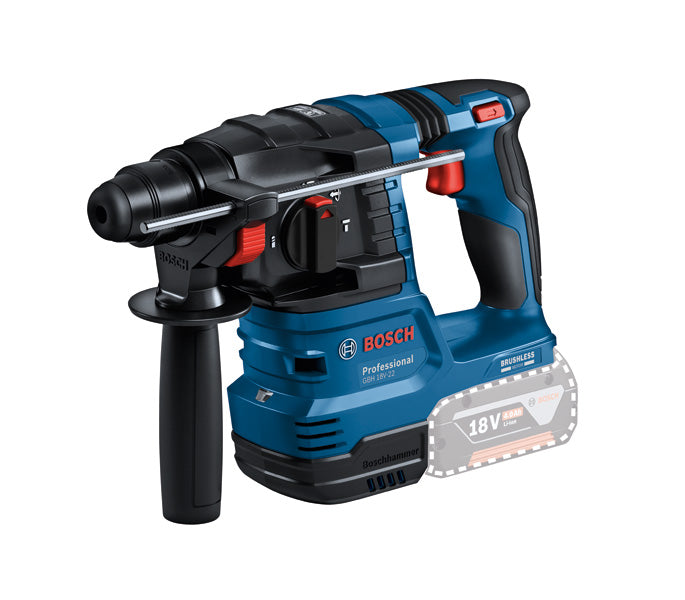

Bosch 0611924004 GBH 18V-22 SDS-Plus Hammer Drill Body Only with GDE 18V-12 Dust Extractor and L-BOXX

For overhead masonry work, confined plant rooms, or long days on the tools, the Bosch GBH 18V-22 Professional is Bosch’s most compact and ergonomic SDS-Plus hammer drill. With 1.9J of impact energy, a brushless motor, and a well-defined centre of gravity at just 2.3 kg, it’s built to reduce fatigue and keep productivity high — body only, ready for your existing 18V AMPShare batteries. Connect the hammer to the GDE 18V-12 Professional dust extractor with just one click for a cleaner site while you work

Key Features

• 3 operation modes — drilling, hammer drilling, and chiselling in a single tool
• 1.9J impact energy — 22mm drilling capacity in concrete and masonry
• Brushless motor — maximum efficiency, longer runtime per charge, and extended motor life
• Constant speed control — maintains consistent speed under load for cleaner results
• Vibration Control — significantly reduces vibration transmitted to hands and arms during prolonged use
• KickBack Control — automatically shuts down on sudden loss of control to reduce injury risk
• Electronic Motor Protection (EMP) — shuts off automatically if the motor is overloaded, overheated, or blocked
• Bosch’s most compact SDS-Plus hammer drill — 2.3 kg with a well-defined centre of gravity for overhead and confined-space work
• Tool-free bit and chisel changes — SDS-Plus chuck for minimal downtime on site
• LED work light — illuminates the drill point for precision in low-light conditions

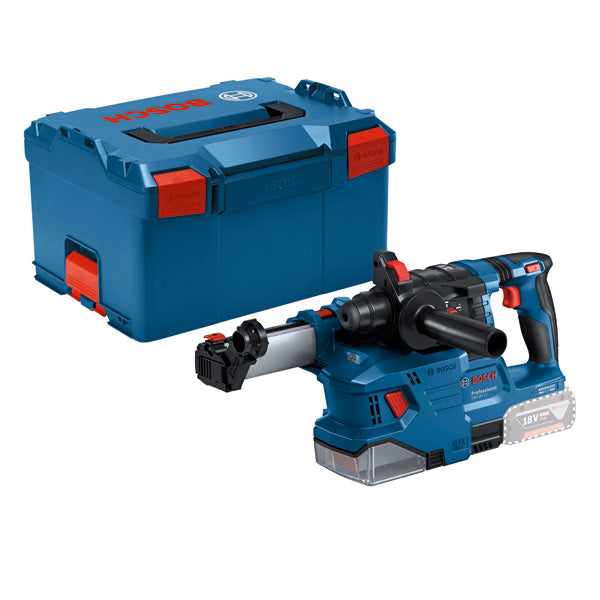

• GDE 18V-12 click-on dust extractor compatible — designed for overhead work to reduce concrete dust inhalation hazard
• AMPShare Alliance compatible — works with all 18V Ampshare batteries from Bosch and partner brands

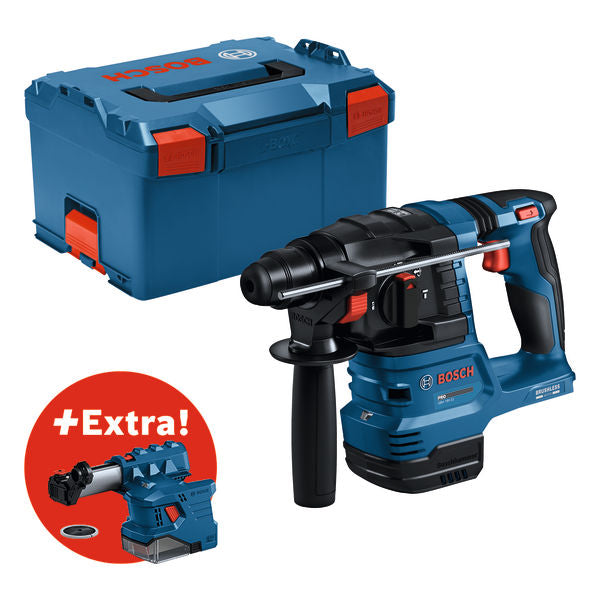

What’s in the Box?

• 1x GBH 18V-22
• 1x Cleaning cloth
• 1x L-BOXX 238 (1 600 A01 2G2)
• 1x 1/1 L-BOXX inlay for GBH 18V-22 + GDE 18V-12 (1 600 A02 NS8)
• 1x Depth gauge (1 613 001 009)
• 1x Dust extraction system GDE 18V-12 Professional (1 600 A02 8H6)

• Extended 3-year warranty — Registration Required

Technical Specifications

• Battery voltage: 18 V
• Tool holder: SDS-Plus
• Operation modes: 3 (drilling, hammer drilling, chiselling)
• Drilling diameter in concrete/masonry: 4–22 mm (recommended 4–12 mm)
• Max. drilling diameter in wood: 20 mm
• Max. drilling diameter in metal: 13 mm
• Impact energy: 1.9 J
• Impact rate: 0–4,675 bpm
• Rated speed: 0–1,050 rpm
• Dimensions (L × W × H): 296 × 102 × 208 mm
• Weight (without battery): 2.3 kg
• Vibration — hammer drilling: 14 m/s² / chiselling: 9.4 m/s²
• Sound pressure / power: 94 dB(A) / 102 dB(A)
• Part number: 0611924004
