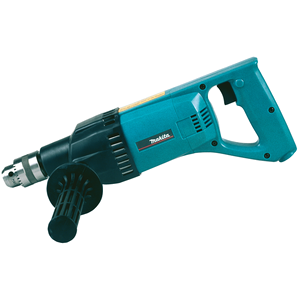

Makita 8406 Diamond Core & Percussion Drill — 110V (850W)

The Makita 8406 is a heavy-duty 110V diamond core drill built around an 850W industrial motor, capable of driving diamond core bits up to 152mm diameter. Designed for plumbers, electricians, general contractors, and the hire market, it combines percussion action for pilot holes with rotary action for dry diamond core drilling — delivering clean, smooth holes through tiles, marble, concrete, and brick.

A built-in safety torque limiter protects the operator if the core bit snags, making it one of the safest and most practical core drills available for site use. Supplied complete with carry case, chuck key, and side handle.

Key Features

• 850W industrial motor — drives large diameter cores up to 152mm
• Torque limiter — prevents operator injury if core bit snags
• Percussion action — for fast, accurate pilot hole drilling
• Rotary action — for dry diamond core drilling
• Heavy-duty construction — built to withstand demanding site conditions
• Variable speed — 0–1,500 RPM for controlled drilling
• Supplied with carry case — for safe transport and storage on site

Technical Specification

• Model: Makita 8406
• Voltage: 110V
• Power Input: 850W
• No Load Speed: 0–1,500 RPM
• Blows Per Minute: 0–22,500 BPM
• Max. Dry Core Drilling: 152mm
• Max. Drilling in Steel: 13mm
• Max. Drilling in Masonry: 20mm
• Max. Drilling in Wood: 30mm
• Weight: 3.7kg

Included Accessories

• Carry case
• Chuck key
• Side handle

Makita 3-Year Warranty

Applies to tools purchased on or after 1st July 2012. Tools must be registered online within 30 days of purchase to qualify for the 3-year extension; otherwise a standard 1-year warranty applies. Warranty claims in years 2–3 must be handled directly with Makita UK. For warranty support, contact Makita UK on 01908 211 678 or email servicecare@makitauk.com.
