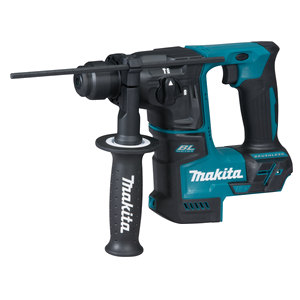

Makita DHR171Z 18V LXT Brushless SDS Plus Rotary Hammer — Body Only

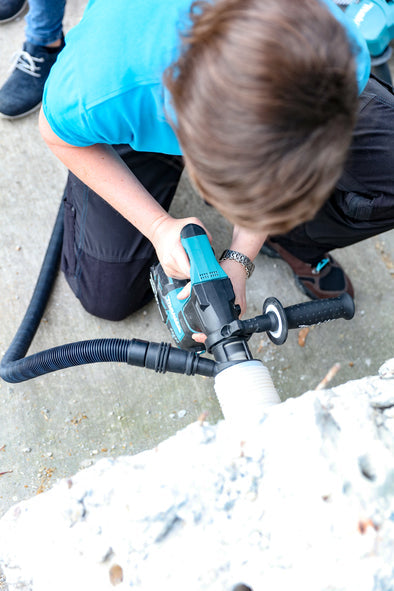

The Makita DHR171Z is a compact, lightweight 18V LXT cordless rotary hammer with a 17mm SDS Plus chuck and brushless motor. Designed for drilling into concrete, masonry, steel, and wood, it delivers 1.2J of impact energy at up to 4,800 IPM — all in a vibration-absorbing body weighing just 2.8kg. Compatible with the full Makita 18V LXT battery platform.
Body only — no battery or charger included. Compatible with all Makita 18V LXT Li-ion batteries.
Key Features
- Brushless motor — higher efficiency, longer tool life, reduced maintenance
- 2-mode operation — Rotary Only and Rotary Hammer for versatile drilling applications
- One-touch sliding chuck — fast, tool-free SDS Plus bit installation and removal
- Variable speed trigger — precise speed control for different materials
- Constant speed control — maintains consistent drilling speed under load
- Electric brake — stops the bit quickly when trigger is released
- Forward / reverse rotation — for drilling and extraction
- Vibration-absorbing housing — reduces operator fatigue on extended use
- LED job light — illuminates the work area in low-light conditions
- Compact and lightweight (2.8kg) — ideal for overhead and confined space work
Technical Specification
- Model: DHR171Z
- Voltage: 18V (LXT Li-ion)
- Chuck: SDS Plus
- Impact Energy: 1.2J
- No Load Speed: 0–680 RPM
- Impacts Per Minute: 0–4,800 IPM
- Max. Capacity in Concrete: 17mm
- Max. Capacity in Steel: 10mm
- Max. Capacity in Wood: 13mm
- Noise Sound Pressure: 86 dB(A)
- Noise Sound Power: 97 dB(A)
- Vibration (Hammer Drilling): 9.0 m/s²
- Vibration (Drilling in Metal): 2.5 m/s²
- Weight: 2.8kg
- Supply: Body Only (no battery or charger)
